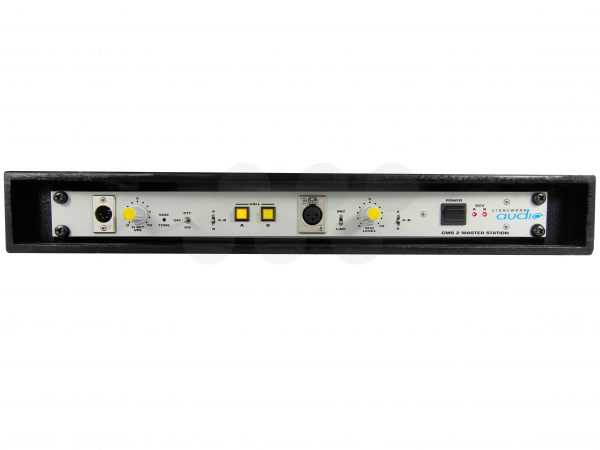

Metro Dual Channel Master Comms Station GS-CMS2


Considered by many to be the definitive master station, thanks to it legendary ease of use, the GS-CMS2 Master Station can be used with up to 16 outstations, and enables 2-channel – A, B, and A+B – while maintaining complete independence between the channels. Easy-to-access controls enable effortless operation. The GS-CMS2 gives the operator control over several functions which are common to the whole system. Both power and audio are supplied via six, three pin male XLR connectors with three connectors per channel, plus, a four pin male XLR connector for headset connection, volume control, side tone adjustment and a Push to Talk (PTT) switch. There is an additional line input via a three pin female XLR on the rear panel (with screwdriver lever adjustment) and a switch to route the signal to wither or both channels.



Supply Voltage:

  • 120/240v AC 50/60hz switchable

Power Output:

  • 0.64 amps for up to 8 outstations per channel, 1.28 amps total

Headset Output:

  • 150-600 ohms

Connections Front:

  • Headset: 4 pin male XLR, Aux. mic/line in: 3 pin female XLR

Connections Rear:

  • Line Out: 6 x3 pin male XLR, Aux Out: 3 pin female XLR, Line In: 3 pin female XLR

Auxiliary Input:

  • Mixed onto both channels, mic to suit 200 ohms types. 10k Ohm per leg balanced. 25mV sensitivity.

Transport Weight (kg):

  • 6.5 kg

GS-CMS2 Master Comms Station Manual
